Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components

Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components

Büyük resim :  Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: ZIITEK
Sertifika: UL and RoHs
Model numarası: TIF500-30-11ES
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1000 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: 1000 adet/torba
Teslim süresi: 3-5 iş günü
Ödeme koşulları: T/T
Yetenek temini: 10000/gün
Detaylı ürün tanımı
Ürün Adı: Elektronik Bileşenler İçin Ultra Yumuşak Termal Ped 3.0W Yüksek Performanslı Silikon Boşluk Pedleri Sertlik: 12 Shore 00
Kalınlık: 0,25mm~5,0mmT Yapı: Seramik dolgulu silikon elastomer
Renk: Koyu gri Termal iletkenlik ve kompozisyon: 3,0 W/mK
Sürekli Kullanım Sıcaklığı: -40 ℃ -200 ℃ Anahtar Kelimeler: Ultra Yumuşak Termal Ped
Özgül Ağırlık: 3.15g/cc Başvuru: Elektronik parçalar

Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components

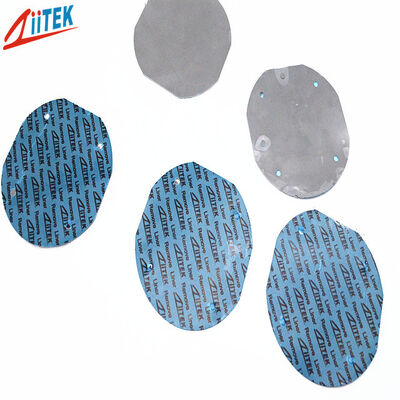

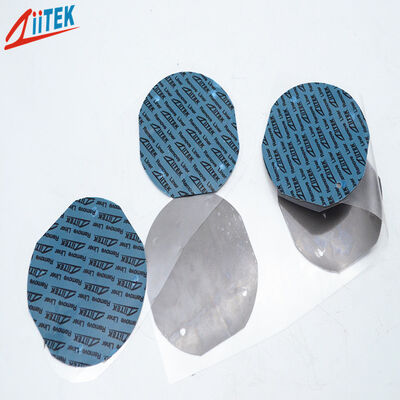

TIF®500-30-11ES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.



Features:


> High thermal conductivity
> Extremely soft

> Low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications:



Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.



Typical Properties of TIF®500-30-11ES Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.15 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 12 Shore 00 12 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007



Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
