7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

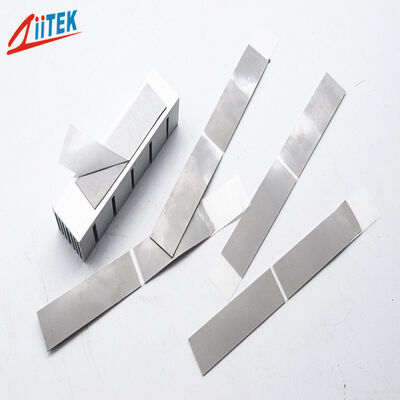

Büyük resim : 7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	ZIITEK
Sertifika:	UL
Model numarası:	TIF500-75-11US

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1000 adet
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	1000 adet/torba
Teslim süresi:	3-5 iş günü
Ödeme koşulları:	T/T
Yetenek temini:	10000/gün

İletişim

Detaylı ürün tanımı

Ürün adı:	Yapay Zeka Sunucuları Yapay Zeka İşlemcileri için 7,5W Isı Transferli Termal Silikon Jel Pedler	Kalınlık:	0,50mm~5,0mm
Isı iletkenliği:	7,5W/mK	Renk:	Koyu gri
Anahtar Kelimeler:	Termal Silikon Pedler	Başvuru:	Yapay Zeka Sunucuları Yapay Zeka İşlemcileri
Yoğunluk(g/cm³):	3.45	Yapı:	Seramik dolgulu silikon elastomer

7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

The TIF^®500-75-11US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 7.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications:

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

Typical Properties of TIF^®500-75-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.45		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.75)	0.040~0.200 (1.00~5.00)	ASTM D374
Hardness	50 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	8.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal conductivity(w/m-K)	7.5		ASTM D5470
	7.5		ISO 22007
Fire rating	V-0		UL94 (E331100)

Standard Sheets Sizes:

Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
