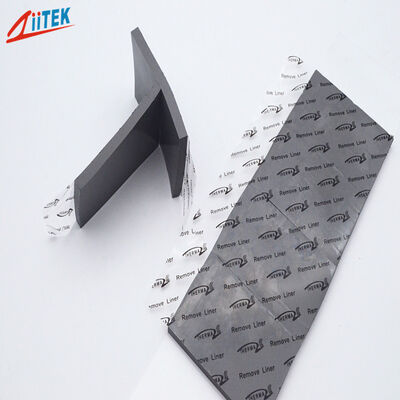

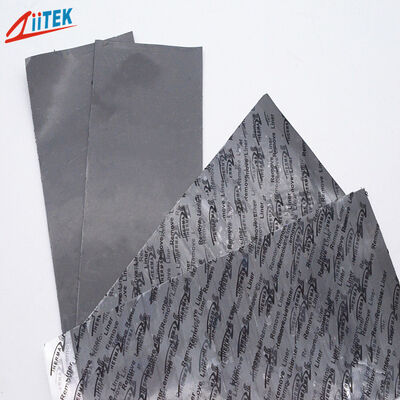

Good Heat Dissipation 7.5W Silicone Thermal Pad For AI Processors AI Servers
The TIF®700PUS Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
Features
> Excellent thermal conductivity:7.5 W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> High insulation performance
Applications
> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIF®700PUS Series |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.2 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.030 |
0.040~0.200 |
ASTM D374 |
| 0.50~0.75 |
1.0~5.0 |
| Hardness |
70 Shore 00 |
20 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1MHz |
4.5 |
ASTM D150 |
| Volume Resistivity |
＞3.5 X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
7.5 W/m-K |
ASTM D5470 |
| 7.5 W/m-K |
ISO22007 |
Product Specifications
Standard Thickness:0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.01" (0.25 mm)
Standard Size: 16"X 16" (406mmX406 mm)
Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
