High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

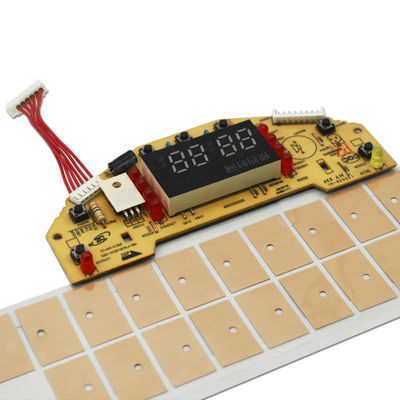

Büyük resim : High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	Ziitek
Sertifika:	RoHs and UL
Model Number:	TIS800K

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1000PCS
Fiyat:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

İletişim

Detaylı ürün tanımı

Products name:	High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet	Color:	Light Amber
Density:	2.0g/cc	Tensile Strength(MPa):	10
Continuos Use Temp:	-45 to 160℃	Thermal conductivity:	1.3W/mK
Keywords:	Semiconductor Electrical Insulating Sheet	Polyimide Film Thickness(inch/mm):	0.001(inch）/ 0.025mm
Application:	IGBT Mosfet

High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

Products discription

TIS^®800K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance. The TIS^®800K model is designed for screw-mounted applications on device openings, with the composite polyimide film providing superior dielectric insulation. Its soft thermal coating enhances gap-filling capability and improves handling during assembly.

Features:

>Relatively soft surface,good thermal conductivity
>High voltage insulation, low thermal resistance
>Tear-resistant and puncture-resistant

Applications:

>Power supplies and automotive battery packs
>Power semiconductor devices
>Audio-visual products
>Charging stations

Typical Properties of TIS^®800K series
Product Name	TIS^®806K	TIS^®808K	TIS^®810K	Test Method
Color	Light Amber			Visual
Polyimide Film Thickness(inch/mm)	0.001"/0.025mm			ASTM D374
Total Thickness	0.006"/0.152mm	0.008"/0.203mm	0.010"/0.254mm	ASTM D374
Density (g/cc)	2.0			ASTM D297
Tensile Strength (Mpa)	10			ASTM D412
Recommended Operating Temperature (℃)	-45 to 160℃			***
Dielectric Breakdown Voltage (VAC)	6500	7000	7500	ASTM D149
Dielectric Constant	3.8			ASTM D150
Volume Resistivity(Ohm-cm)	3.5X10¹³			ASTM D257
Flame Rating	94 V0			equivalent UL
Thermal conductivity	1.3 W/mK

Standard Thickness: 0.006" (0.152 mm), 0.008" (0.203 mm), 0.010" (0.254 mm)
For other thickness options, please contact us.

Standard Size: 10" x 100' (254 mm x 25.4 m).The TIS®800K series can be die-cut into various shapes for supply.

High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet 0

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
