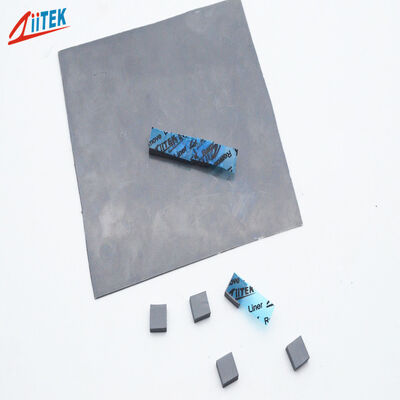

Custom Thermal Pad 2.0w/mk 0.25mm-5mm Thickness RoHS UL Certified Thermal Silicone Conductive Pads For LED Battery
The TIF®100-20-10F Series is a structurally supportive thermal pad designed to provide excellent heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat efficiently, and offers mechanical support for stacked components, resisting compressive deformation. This product is ideal for applications requiring a balance between heat dissipation, insulation, and mechanical stability.
Key Features
- Good thermal conductivity: 2 W/mK
- Naturally tacky surface requiring no additional adhesive coating
- Soft and compressible for low-stress applications
- Outstanding thermal performance
- Available in various thicknesses
Applications
Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, and more.
Technical Specifications of TIF®100-20-10F Series
| Property |
Value |
Test Method |
| Color |
Blue |
Visual |
| Construction & Composition |
Ceramic filled silicone elastomer |
****** |
| Density (g/cm³) |
2.8 |
ASTM D792 |
| Thickness Range (inch/mm) |
0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) |
65 | 60 |
ASTM 2240 |
| Recommended Operating Temperature (℃) |
-40 to 200 |
*** |
| Breakdown Voltage (V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1Mhz |
4.7 |
ASTM D150 |
| Volume Resistivity (Ohm-cm) |
＞1.0×10¹² |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
2.0 |
ASTM D5470
ISO22007 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging & Lead Time
Packaging Details:
- PET film or foam for protection
- Paper card to separate each layer
- Export carton inside and outside
- Customized packaging available to meet customer requirements
Lead Time:
Quantity: 5000 pieces
Estimated Time: To be negotiated
Company Profile
Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years and is a high-tech enterprise integrating R&D, production, and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province, and Vietnam, we ensure stable and reliable global delivery capacity.
We specialize in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. Our core products are widely recognized by the market.
Our products have passed ISO9001 and IATF16949 certification and meet RoHS/UL standards, making them suitable for new energy, 5G, data center, automotive electronics, and other fields.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer based in China.
Q: How long is your delivery time?
A: Generally 3-7 work days if goods are in stock, or 7-10 work days if not in stock, depending on quantity.
Q: Do you provide samples? Is it free or extra cost?
A: Yes, we offer samples free of charge.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, most thermal gap pads have double-sided natural inherent tack. Non-stick surface treatment is also available according to customer requirements.
