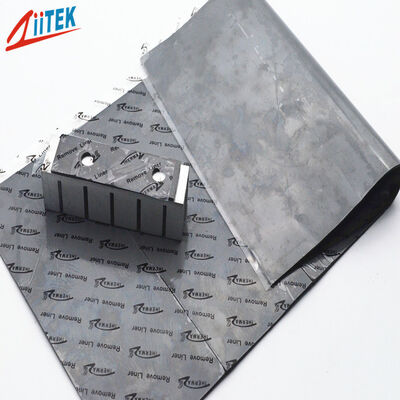

Premium Performance Dark Gray Thermal Pad 4.0W/MK For Network Communication Products
Products description
The TIF®500-40-11S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.It is an ideal choice for addressing medium to high power heat dissipation needs,achieving the best balance between cost and performance.
Features:
> Good thermal conductive 4.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

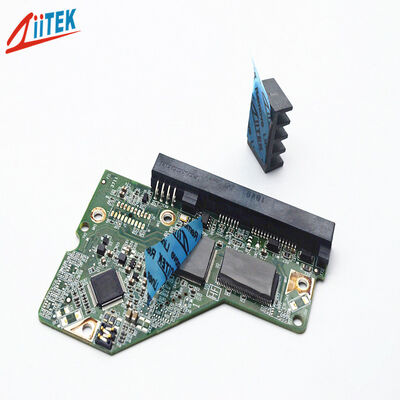

Applications:
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF®500-40-11S Series |
| Property |
Value |
Test method |
| Color |
Dark Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.2 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020 |
0.030~0.200 |
ASTM D374 |
| (0.25~0.50) |
(0.75~5.00) |
| Hardness |
65 Shore 00 |
45 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
7.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
4.0 W/m-K |
ASTM D5470 |
| 4.0 W/m-K |
ISO22007 |
Products specification
Standard Thickness: 0.010"(0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size:16"×16" (406 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
